TT-JAX ( .173" ) JACK PANELS
JACK PANELS
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

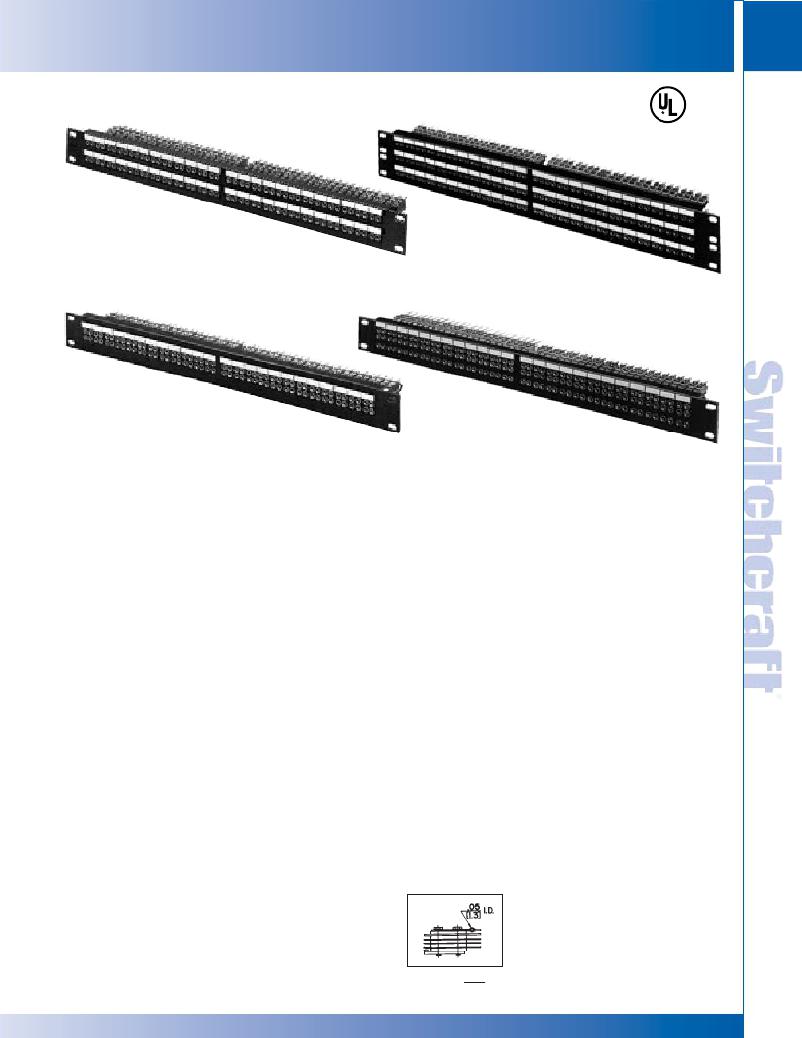

TT-JAX ? (.173") JACK PANELS SERIES 1600, A1600, B1600, C1600
211
SERIES 1600 and A1600
Jack Panels with optional jacks.
(See next page for specific part numbers.)
SERIES 1700
Jack Panel
with optional jacks.
(See next page for specific part numbers.)
SERIES 1600 DOUBLE ROW JACK PANELS
Black anodized panel has four inserts (24 single jacks). Double
row configuration accommodates 96 total jacks (48 pairs). Jack
spacing eliminates cross-patching of adjacent circuits when
twin plugs are used. Panel size: 1.75" x 19". Four, Kwik-
Change ? designation strips for circuit identification supplied.
SERIES A1600 DOUBLE ROW JACK PANELS
Similar to Series 1600, except mounts 104 jacks. Jacks
are spaced on .312" centers for maximum jack density. Four,
Kwik-Change ? designation strips supplied.
SERIES B1600 THREE ROW JACK PANELS
2.625" x 19" panel size yields high density (144 jacks). Jacks
are paired for single or twin plugs without cross-patching. Six,
Kwik-Change ? designation strips supplied.
SERIES C1600 THREE ROW JACK PANELS
Similar to B1600, except maximum jack density (156 jacks).
Six, Kwik-Change ? designation strips supplied.
SERIES 1700 TWIN ROW JACK PANELS
Standard 1.75" x 19" panel accepts 48 TT-Twin-Jax ? jacks.
Two, Kwik-Change ? designation strips supplied.
SERIES B1700 THREE ROW JACK PANELS
Accepts 48 Tri-Jax ? with alternate mounting centers to
eliminate cross-patching between adjacent circuits. Panel size:
1.75" x 19". Two, Kwik-Change ? designation strips supplied.
SPECIFICATIONS
SERIES 1600, A1600, B1600, 1700, B1700
Panel and Designation Strip: Aluminum alloy, extruded.
SERIES B1600 and C1600
Jack Panels with optional jacks.
(See next page for specific part numbers.)
Series B1700
Jack Panel
with optional jacks.
(See next page for specific part numbers.)
Black thermoplastic UL 94V-0.
Panel Insert: Thermoplastic polyester, UL 94V-0.
Marking Strip: White matte finish plastic.
Designation Strip Cover: Extruded clear plastic.
ORDERING
1. Part number tables list jack panels with the most commonly
used jack circuits. Custom jack panels can be built on
special order to OEM requirements. Typical special
order features are:
? Lamp jack with incandescent or LED lamps.
? Solder lug or wire-wrapping terminals.
? Pre-printed designation strips.
? TT-Switch? switches with wide switching selection.
2. Contact Switchcraft for all special order items.
SPECIFYING NOTE:
Prefix letter “D” on part number indicates panels are drilled for
mounting vertical designation strips on both ends. EXAMPLE -
D1600, AD1632B, WCD1634B (vertical designation strips not
included). Order DS321 for 1.734" high panels; DS350 for
2.069" high panels. See “Designation Strips” section.
The most commonly-used combinations of panels and jacks
are listed on following page. 1600, A1600, B1600, C1600 panels
can be assembled with many different “bantam type” jacks.
Bussing type terminals which allow
you to buss jacks quickly and easily
are available on special order.
Per
QQ-A-200/8. Black anodized per MIL-A-8625C.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
